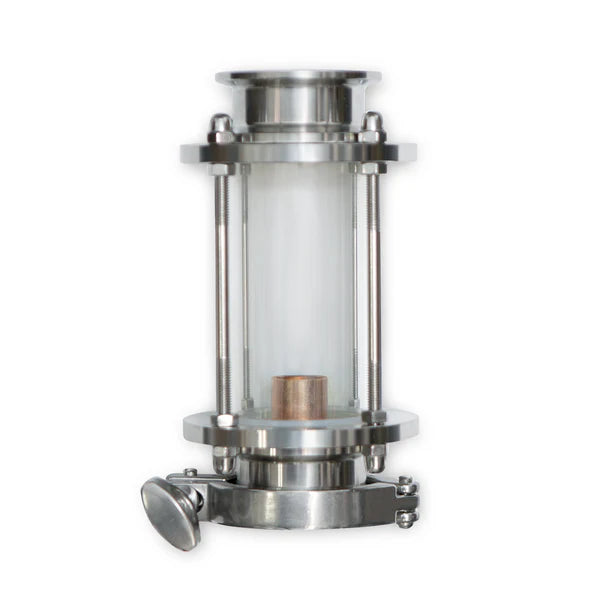

STILL SPIRITS SS CREATE+ SIGHT GLASS BUBBLE PLATE

The Create+ Sight Glass Bubble Plate is designed for use with 2” tri-clamp compatible distilling systems.
Bubble Plates are designed to promote reflux and provide visual feedback of the distillation process*. Sight Glass made from 304 grade stainless steel and borosilicate glass.

*Results may vary, depending on your individual set-up.

Key features:

• Connects to 2" tri-clamp distilling accessories
• Copper Bubble Plate with stainless steel guide ramp
• Sight Glass: Borosilicate & 304 grade sainless steel construction
• High temperature resistent food grade silicone

DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.

Included:

• Sight Glass
• Copper Bubble Plate with Silicone Flat Sea
• 2" Tri-clamp
• 2" Silicone Gasket

Specifications:

• Dimenions: H 16.7 cm x W 5.1 cm x D 5.1 cm
• Plate WT 1 mm, diameter Ø50.0±0.2. Perforations approx. Ø 2mm.
• Weight: 1.116 kg

NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:

• A total column & condenser height up to 1.1 m from the lid or dome.
• A total column & condenser weight up to 11 kg, including up to 2 kg of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm to the main column.

We recommend external support if:

• Your column & condenser exceeds the above specifications.
• The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
• If the column & condenser is noticeably leaning.
